Application: Universal Fit - 8,000 Pound Capacity

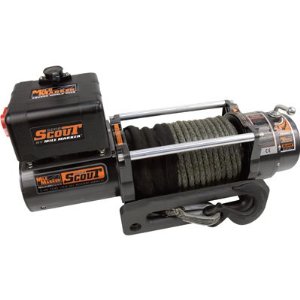

Introducing the newest addition to the Mile Marker winch line, the SEC8 SCOUT. From the foundation of the the popular 8,000 pound SEC8 model comes the competition ready, expedition willing SCOUT feature set: 96’ of Dyneema Synthetic Rope, a rugged, black anodized aluminum hawse fairlead, and a durable powder coated clevis hook. For those willing to go, let the SCOUT lead the way.
Product Features:
4.8 HP Series Wound Motor
Rugged Planetary Gear Sets
Automatic Load Holding Brake
Anodized Aluminum Hawse Fairlead
96’ of 11/32” Synthetic Rope with Heat
Sheath on drum and outer layer
Integrated Kill Switch
Clockable Gear Side
Product Specs:
Part Number: 77-53141
Rated line pull: 8000 lbs
Gear Train: 3 Stage Planetary
Gear Ratio: 152:1
Motor Series: Wound, 4.8 hp, 12 V
Control Pendant: Power-In, Power-Out Remote, 12’
Dimensions: (LxWxH): 21.50” X 6.25” X 8.00”
Synthetic Rope: 11/32” X 96’ (nominal 15,000 lbs)
Drum Size: 2.5” X 9”
Net weight: 57.5 lbs
Bolt Pattern: 4 Bolt Pattern, 4.5” X 10”
